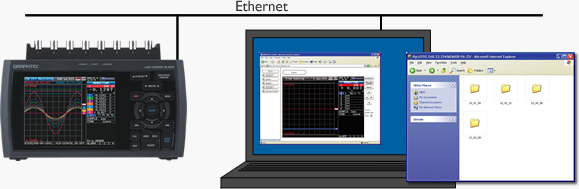

Easy PC measurement via USB; remote monitoring via Ethernet web server and FTP functions
The USB and Ethernet connections enable transfer of captured data to your PC and setup and control of the GL900 from a PC, even without the PC software provided standard with the GL900.
Web server/FTP server functions
Waveform display and GL900 setup operations can be performed via a web browser (e.g., Internet Explorer). In addition, data files captured to the GL900’s internal memory or to a USB memory stick can be transferred or deleted from the PC.
USB drive mode
When your GL900 is connected to your PC via the USB interface, the GL900 can be operated in USB mode to enable fast, easy data transfers from internal memory to the PC.
NTP client function
Simply connect the GL900 to an NTP server via an Ethernet connection to synchronize GL900 time with NTP server time at periodic intervals
Dedicated software for real-time data capture

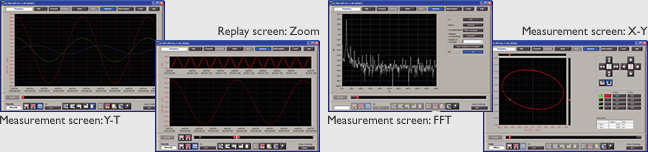

Three measurement screens are provided to allow selection of the screen that best suits measurement needs.
The Replay screen provides a Zoom screen feature to enable enlarged display of specific sections of long-term measurement data.
Simple operations for anyone
Easy-to-use software using icon keys for intuitive operations
Convenient functions
Various convenient data-processing functions are built in.
- Direct to Excel function
This function enables measurement data to be written directly to an Excel file. - Search function
This function enables searching for specific values in the captured data. - CSV batch conversion function
This function enables batch conversion of multiple captured files to CSV file format. - Thumbnail function
This function enables display of captured data files as thumbnails.
