หน้าจอแสดงผล
Large Easy-to-read 7-inch LCD
Monitor data in multiple methods in addition to digital value display and full waveform display screen.

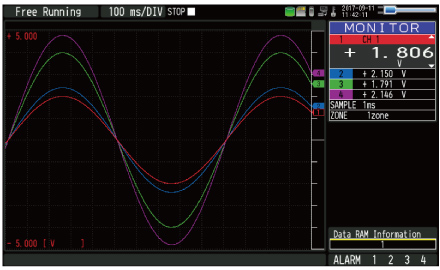

Y-T waveform monitor screen
Displays data with analog waveform and digital value. Screen can also be split into 1, 2, 4 or 8 zones to display the channels in different zones.

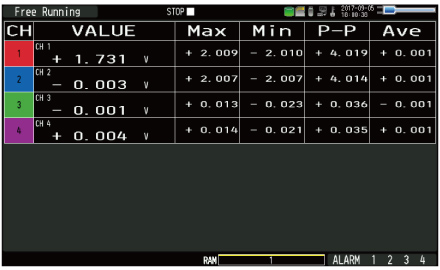

Digital monitor screen
Displays current data in digital value and results of real time statistical calculation. (Function: Maximum, Minimum, Peak-to-peak, and Average)
When displays only current data, it can be shown in 1, 2, 4 or 8 zones.

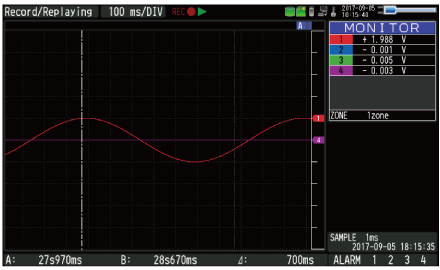

Past waveform monitor screen
Display the past part of the data while capturing data. Execute without stopping measurement and also scroll past data. Data screen can be switched with past and current.

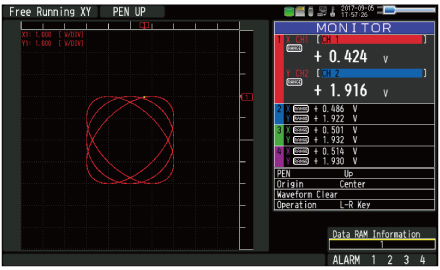

XY graph monitor screen
Emulates the classic XY chart recorder. Also supports features for pen up/down and position movement.
Quick and Easy Set Up Process
Simple operation with cursor and enter keys, and menu-driven operation with six pre-set menu screens: AMP, DATA, DISP, TRIG, I/F (Interface) and OTHER.
