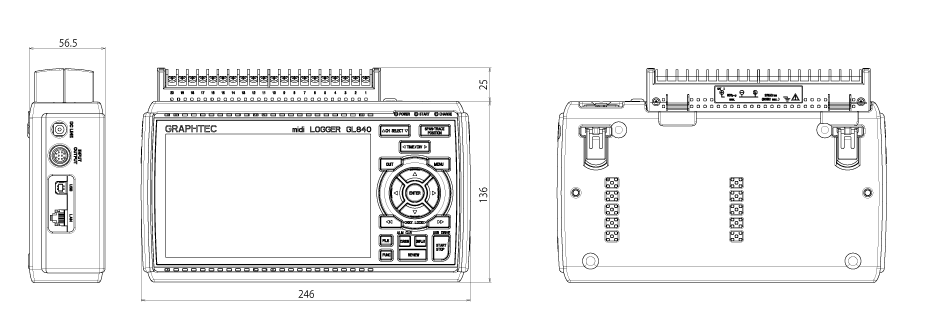

GL840-M External Dimensions with cover (rubber protector)
Scale : mm
Tolerance : +/- 5 mm

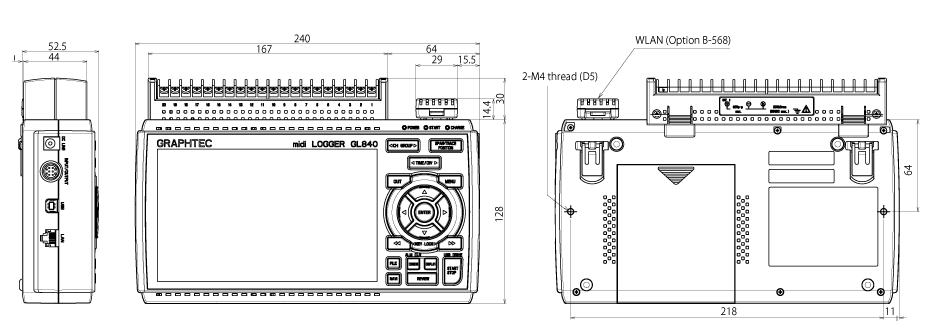

GL840-M External Dimensions
Scale : mm
Tolerance : +/- 3 mm

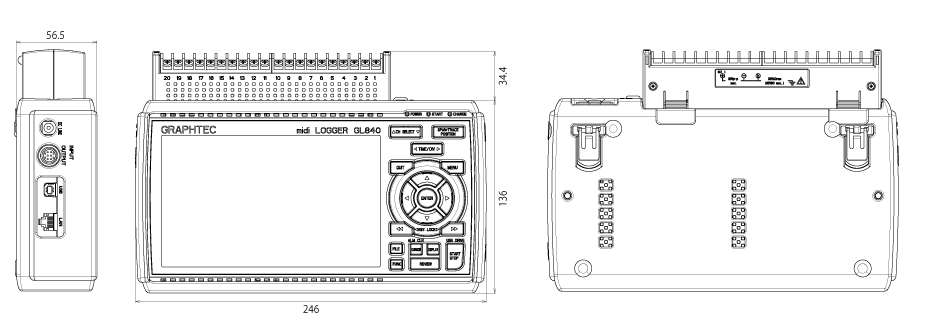

GL840-WV External Dimensions with cover (rubber protector)
Scale : mm
Tolerance : +/- 5 mm

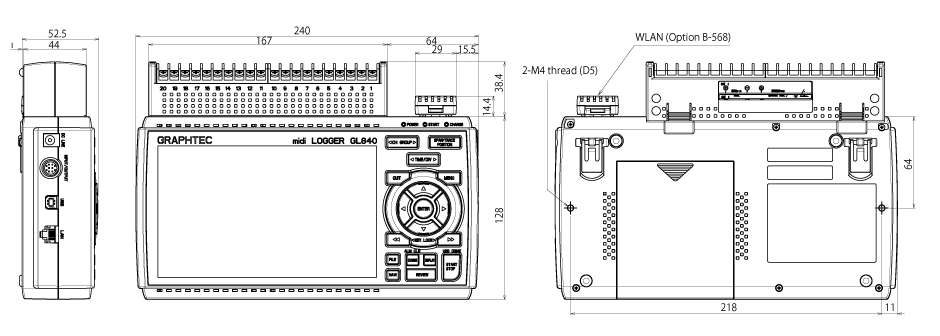

GL840-WV External Dimensions
Scale : mm
Tolerance : +/- 3 mm
Input terminal / Base unit

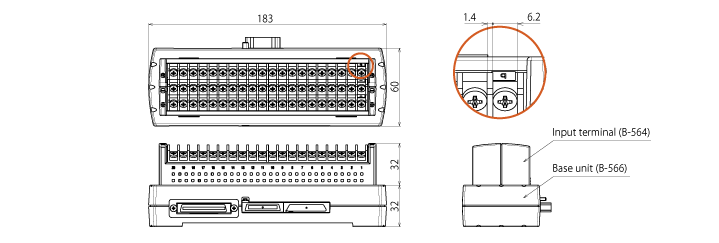

■Input terminal (B-564) with Base unit (B-566)
■Input terminal (B-565) with Base unit (B-566)

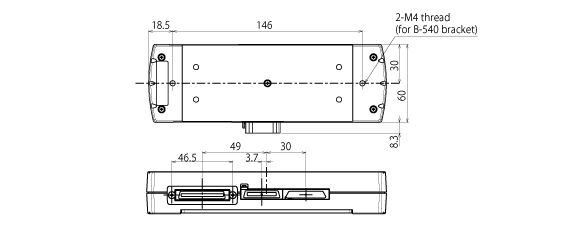

■Base unit for input terminal (B-566)

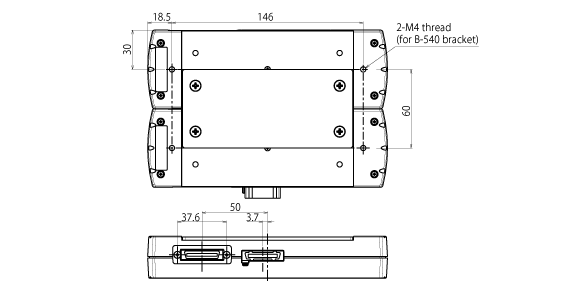

■When two Base unit are connected.
Scale : mm
Tolerance : +/- 3 mm
