Easy-to-use upright high-speed isolated 8-channel multifunction logger
An easy-to-use upright device enabling isolated 8-channel multifunction input, the GL900 is capable of performing high-speed simultaneous measurements of voltage, temperature, and various other phenomena.
 |
+/-20 mV to +/-500 V |
 |
Thermocouples: K, J, E, T, R, S, B, N, W |
 |
0 to 100% (the B-530 option is required) |
 |
4 channels Count, Inst., Rpm |
 |

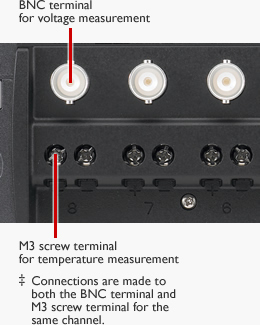

4 channels ‡ Select either Pulse or Logic |
*) The input signal needs to be not exceeding the specified voltage at any time.
The component in the amplifire of the unit may have the damage by over voltage.
Please check the details of over voltage in the specification sheet (Maximum input voltage or Withstand voltage seccion) or the caution label attached on the unit.
High-voltage measurement capability

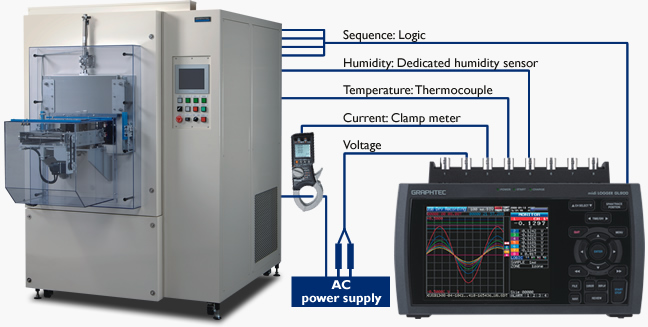

The wide 500 V range enables 100 to 240 VAC power supply voltage waveform measurements. Using logic input and a clamp meter simultaneously allows measurement of a device’s power supply voltage and current concurrently with sequential control of various points.
