ฟังก์ชันการทำงาน

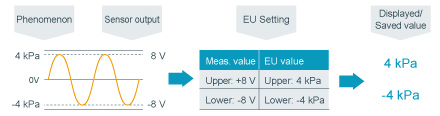

Scaling (Engineering unit) function
Measured voltage value can be converted to a specified engineering unit. The value can be displayed with the physical measurement value of the sensor and be saved into the data file with the converted values.
Calculation function between channels
Four arithmetic operations (Addition, subtraction, multiplication and division) are available using two analog input channels.
* Data can be saved only in GBD file format.
(CH2 is a value obtained by multiplying the values of CH3 and CH1)
* Value of calculated results are displayed and saved into data file.
Trigger function
The trigger in this unit has multiple functions including level trigger of input signal value for each channel.
* When trigger is used for starting action, level of measured signal can be set for each channel. Threshold Analog input: High or Rising, Low or Falling, Window-in, Window-out
Logic input: H or L (4-channel signal pattern)
Pulse input: High or Rising, Low or Falling, Window-in, Window-out
Combination: Level OR, Level AND, Edge OR, Edge AND
Alarm function & signal output
Threshold of an alarm can be set for each channel. When an alarm occurs, notification is sent by following methods.
Logic input: H or L (signal in each channel)
Pulse input: High or Rising, Low or Falling, Window-in, Window-out
When alarm is detected
- Display to screen (Digital value of alarm's origin channel is displayed in red)
- Save alarm information to measurement data file
- Output alarm signal
Number of channel: 4 channels (Output channel can be arranged to each source channel in OR condition.)
Signal type: Open collector (pull-up to 5 V with 10 kΩ resistor), maximum load is the 24 V and 100 mA.
* Requires Input/Output cable for GL series (B-513 Option).
Other helpful functions
Delivers reliable measurements out at a location with unstable power supply.
Equipped with three types of options for power source, AC adapter, DC input, and battery pack. With a battery pack, GL2000 runs continuously for approximately 3 hours. If an AC power failure occurs, it will automatically switch from the AC adapter to the battery pack. Additionally, when the voltage of the battery pack reaches low, measurement is automatically stopped after saving the data file preserving the accumulated data. (Requires two battery packs (B-569 option) installed.)
(Vibration durability test: 5 m/s²)
Storage case (B-581)
Portable case to store GL2000 and signal input cables for easy handling.
* The case is not to protect from hard impact.
Cover
Protect the main body from cosmetic damages and minor impacts. GL2000 is shipped with cover attached.
* The cover is not to protect from hard impact.

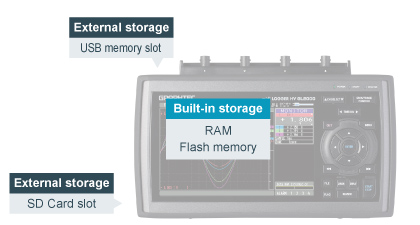

Supports large built-in RAM (4MS/ch) and built-in Flash (4 GB)
Long term recording is made possible with 4 M samples/ch built-in RAM and 4 GB built-in Flash memory. It supports both USB Flash memory and SD Card memory to be used as external storage devices for recorded data for certain sampling intervals.
Approximate recording time
■ 4 channels of analog input. ■ Data is saved as a GBD file.
| Memory type | Data capacity |
1MS/s (1μs) |
100kS/s (10μs) |
1kS/s (1ms) |
1S/s (1s) |
|---|---|---|---|---|---|
| Built-in RAM | 4 M samples/ch | 4 seconds | 40 seconds | 66 minutes | 46 days |
| Built-in Flash memory | 3.9 GB | N/A | N/A | 3 days 19 hrs. | Over 1 year |
| External memory (SD/USB Flash memory)* | 4 GB | N/A | N/A | 4 days 3 hrs. | Over 1 year |
■ 4 channels of analog input with 4 channels of Pulse input. ■ Data is saved as a GBD file.
| Memory type | Data capacity |
1MS/s (1μs) |
100kS/s (10μs) |
1kS/s (1ms) |
1S/s (1s) |
|---|---|---|---|---|---|
| Built-in RAM | 4 M samples/ch | 4 seconds | 40 seconds | 66 minutes | 46 days |
| Built-in Flash memory | 3.9 GB | N/A | N/A | 1 days 12 hrs. | Over 1 year |
| External memory (SD/USB Flash memory)* | 4 GB | N/A | N/A | 1 days 15 hrs. | Over 1 year |
* When using 8 GB or larger memory, the size of data file will be up to 4 GB. The Relay mode enables extended recording time.
Convenient Data Recording Functions
Memory division function
Built-in RAM can be divided into 1, 2, 4, or 8 blocks with multiple high-speed recording measurement using the trigger function.
When multiple measurements are executed, the captured data is overwritten in memory block 1.
When multiple measurements are executed, recorded data is stored in the next memory block.

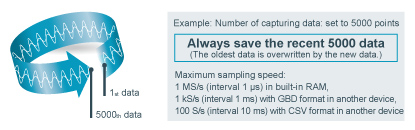

Ring mode
Saves most recent data of specified number after recording stops.
Number of capturing data 1000 to 10000000 data
* When using built-in RAM, 10 to 4000000 data

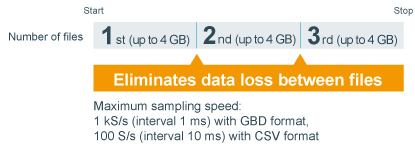

Relay mode
Save data to multiple files with specified capturing time or file size (up to 4 GB) until recording data is stopped.

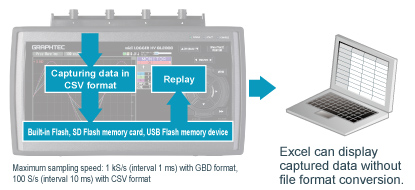

Save & replay data in CSV format
Captured data can be saved with GBD (binary) and CSV (text) format. CSV format file can be played on GL2000 and opened with spreadsheet software.

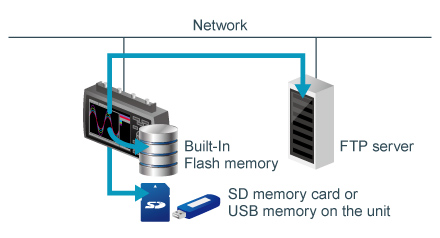

Data backup and hot swaps
The data file can be created periodically for purpose of backing up data while recording it, and the file is automatically transferred to another storage device on the unit or FTP server on the network.
Backup interval: 1, 2, 6, 12, 24 hour(s)
Backup file destination: Built-In Flash memory, SD memory card, USB memory device, FTP server
Data file format: GBD (binary) or CSV (text)
* The CSV format and FTP server are available with firmware version 1.14 or rater.
• Available sampling speed is the 100 ms or slower when using the CSV format.
• When the RING mode or external pulse synchronization sampling is selected for recording, the backup function is not available.
• The storage device specified as the recording destination of the measurement data can not be set as the transfer destination of the backup file.
• When backup is enabled and data file format is specified with CSV format, SD memory card exchange (hot-swapping) and RELAY recording are not available.
Auto save function
Recorded data saved in a built-in RAM is automatically copied as data file to a built-in Flash memory, SD Flash memory card or USB Flash memory with auto save function. An SD Flash memory card or a USB Flash memory can be used as a backup location when using the built-in RAM. The process will prevent losing any data captured in the built-in RAM by any overwrite or power cycles.
Search function
The search function can locate a specific value within the captured data as well as finding abnormal values within data of a long-recorded file.
Search for analog signal levels, logic signal pattern, pulse signal levels or alarm point in captured data.
Analog signal channel: Signal levels in each channel
・Search mode: raising, falling, window-in, window-out
Logic signal channel: Signal level (H or L) in each channel
Pulse signal channel: Signal levels in each channel
・Search mode: raising, falling, window-in, window-out
Alarm: Alarm detected point on selected alarm signal output channel
Equipped with Ethernet (LAN) and USB interface to communicate with PC

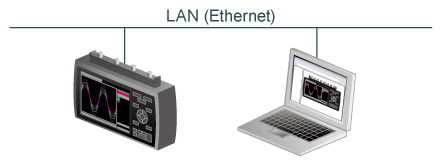

Convenient function with LAN (Ethernet interface) capability
When GL2000 is connected to LAN using the Ethernet interface, networked computer can monitor real-time measured value, transfer files, and change set ups without using application software (GL980_2000-APS software).
Web server function
GL2000 can be controlled externally via a network on the WEB browser, which also supports real-time monitoring and ability to use the menu buttons.

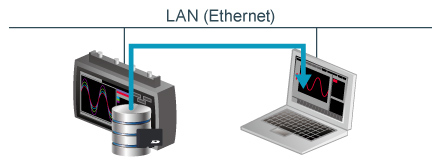

FTP server function
File in available storage device on GL2000 except built-in RAM can be transferred or deleted from the PC.

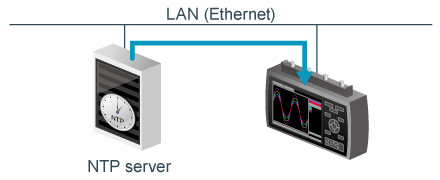

NTP client function
The clock on the GL2000 is periodically synchronized with the NTP server.

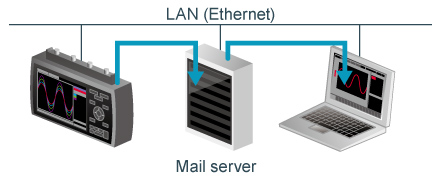

Email sending function
Send information when alarm occurs, or when battery is low, or when communication speed drops, or to notify when the space becomes limited on the storage device by an e-mail to specified address. Information can also be sent periodically by settings.
USB Drive Mode to Easily Transfer Files to PC

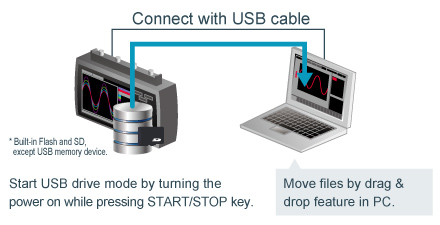

USB drive mode
The USB drive mode function allows simple data transfer to the PC from built-in Flash memory and SD Flash memory card which acts as USB Flash drive on GL2000. It also allows to add, remove, and delete files from storage device on GL2000 from PC file browsing explorer.
