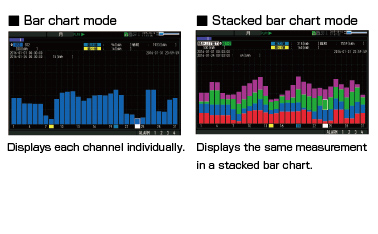

Displays the data by a bar chart (in firmware ver.1.10 or later)

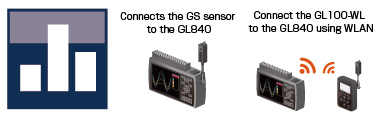

The integrated data that is measured by the digital sensors can be displayed by a bar chart in the GL840 series.
| Available GS sensors | Measurement | Unit |
|---|---|---|
| GS-TH (Temp/Humidity) sensor | Integrated temperature | ℃h |
| GS-DPA-AC adapter with GS-Acxxx sensor (AC current/power) | Integrated power | kWh |
| GS-LXUV (Illuminance/UV) sensor | Integrated illuminance | lxh or klxh |
| Integrated UV | mW/cm2h |
Alarm output function
Alarm signals can be placed using the four channel alarm output ports based on set conditions for each channel.
* Optional cable (B-513) is required.
USB drive mode
USB drive mode function enables data to be transferred to the PC from GL840 by drag & drop feature.
Navigation function
Simple to use navigation screen allows setting operation for measurement and wireless LAN adapter.
Large easy-to-read 7-inch wide color LCD
Monitoring data can be displayed in waveform or digital form. Parameter settings can be displayed on the screen.
3 Types of Power Source
Choose from AC power supply, DC supply* or the rechargeable battery pack.*
* Optional accessories (B-514 or B-569) are required.
Networking features
Various functions are available using a network.
Web & FTP server function, FTP client function, NTP client function

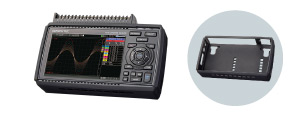

Cover (B-578)
Protect the main body from cosmetic damages and minor impacts.
* The cover is not to protect from hard impact.
Storage case (B-581)
Portable case to store GL840 and signal input cables for easy handling.
* The case is not to protect from hard impact.
