High-definition display module with touch panel enables measurement in various configuration

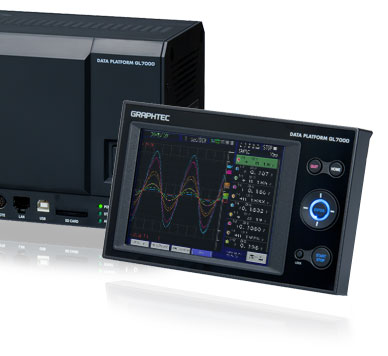

The detachable display module allows both stand-alone and embedded system configurations

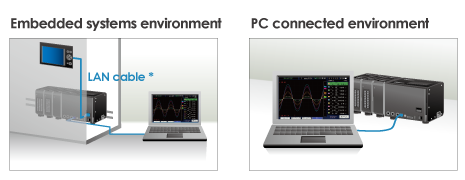

Measurement settings and signal measurement can both be done without a PC by attaching the display module. The display module can be moved to different locations for remote operation by connecting it to the main module with a LAN cable*, it also can be embedded into the system. The module can stile be operated by the PC even when the display module is connected.

* Up to 10m using CAT5 LAN cable (straight connection)

Large easy-to-read 5.7-inch (VGA 640 x 480) high-definition LCD monitor

Utilizes a bright clear TFT color LCD monitor.
Makes it easy to read data in waveform or digital form and to check measurement parameter settings.

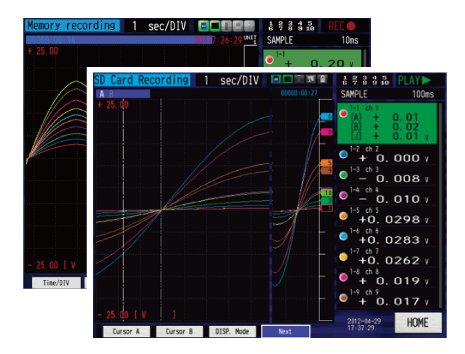

Y-T display

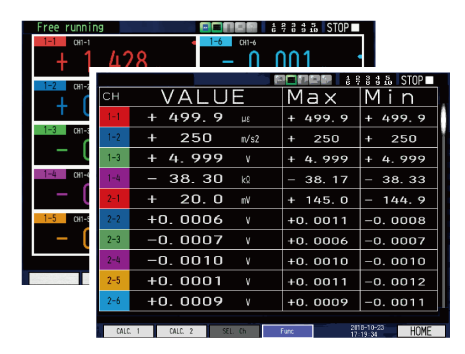

Digital display

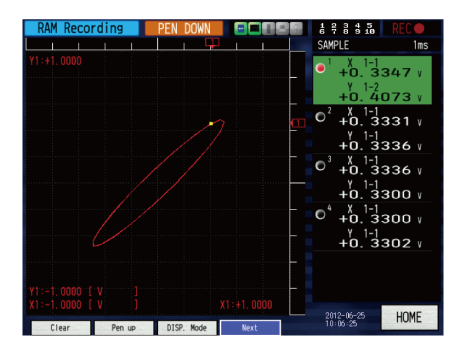

XY display

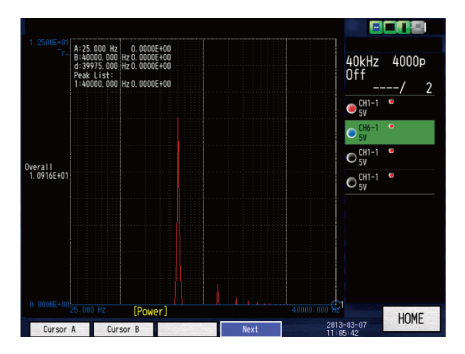

FFT display

The display unit incorporates a touch panel system to provide convenient on-site operation

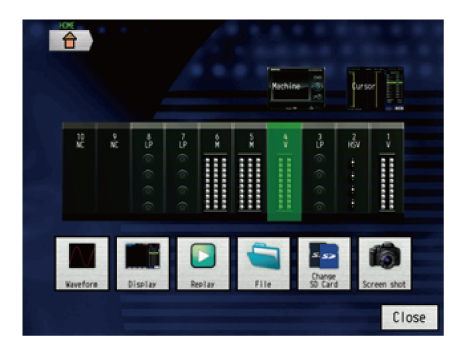

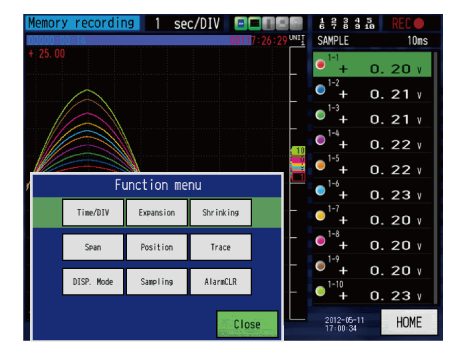

Function Menu
Easy access to each functions from listed icons.*
* It s required firmware version 2.00 or later.

Touch the icon, move to the
next setting menu screen.

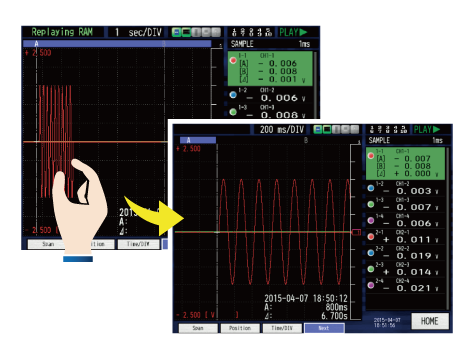

The display waveform is able to
expand or shrink.
